When working with BuildBlock ICF walls, including stem walls and crawl space walls, proper bracing is essential to ensure your walls stay plumb during the pour. Concrete is heavy, and EPS foam is light—without secure bracing, you’re leaving too much to chance.
But here’s the challenge: standard ICF bracing systems aren’t always ideal for stem walls. Their tall braces and wide outriggers can be cumbersome, especially when working in tight spaces or around a building pad cut.
For walls up to about 4 feet tall, a straightforward solution works wonders: 2×4 lumber bracing.
Here’s how:

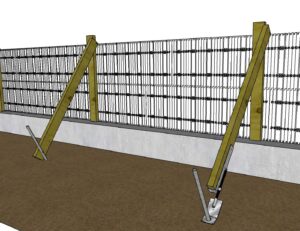

– Attach a vertical 2×4 to the wall every 6 feet.
– Add a diagonal kicker that connects to a grade stake.

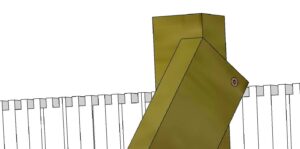

– Secure the kicker to the vertical 2×4 with a 3″ deck screw at the top.
Need to adjust for plumb? Just loosen the screw, nudge the wall into position, and re-tighten. With a bit of muscle, even a 4′ wall can be adjusted by one or two people before the concrete sets.
Once your wall exceeds 4 feet in height, it’s time to consider a commercial bracing system. Adjustable outriggers are designed to handle the weight and help you fine-tune the wall’s position.
One standout solution is the Zont bracing system by Fab-Form, available through BuildBlock. It’s a cost-effective way to brace ICF walls using shorter lumber pieces, thanks to its adjustable turnbuckle system. Pair it with the Zont whaler bracket and Zuckle turnbuckle, and you’ll get impressively straight walls—without the hassle of oversized bracing systems.
Whether you’re building a crawl space or a full-height wall, choosing the right bracing method can save you time, money, and headaches. For more tips and expert advice, visit buildblock.com or call our tech line at 405.467.9161.
